THOK GRAM DREAM KIT

1

2

3

4

5

6

7

9

UNIQUENESS

CUSTOMISATION

EXCLUSIVITY

GRAM DK: CREATE THE BIKE OF YOUR DREAMS.

The GRAM Dream Kit (dk) is a premium frame kit, the starting point for the creation of a fully customised full-carbon THOK GRAM with large battery capacity (820 Wh), for which you can decide graphics and components.

Includes full-carbon mullet frame, Shimano EP801 or Askoll ULTRA C90A motor , integrated 820Wh battery, FOX Factory Kashima suspensions, other top FSA and THOK accessories and the exclusive Dream Box with Libellum.

Yours for £ 6.599 including assembly costs.

Click on “CONFIGURATOR” to choose size, style and graphics and decide whether to buy just the kit or add other components to complete the assembly.

GRAM dk KIT

FRAME

DRIVE UNIT

BATTERY

SUSPENSIONS

FRONT END

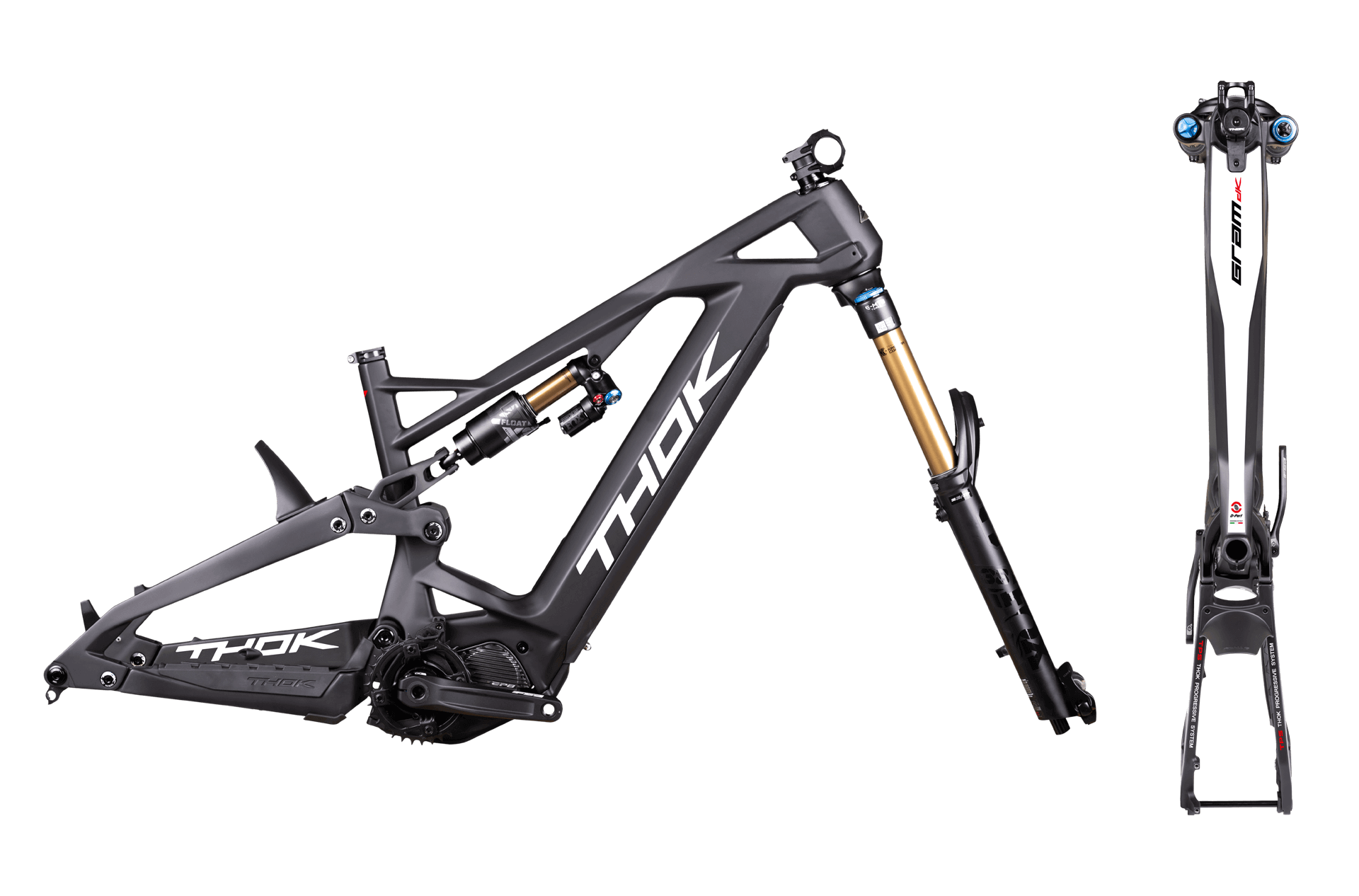

GRAM full-carbon mullet frame
Graphics are customisable. You can choose between 2 styles and 8 colours by clicking on “CONFIGURATOR”

DRIVE UNIT

You can choose between 2 drive units: Shimano EP 801 and Askoll Ultra C80A.

SHIMANO EP 801 + INTEGRATED BATTERY 820 WH

ASKOLL ULTRA C90A

The EP801 is an intelligent drive unit with smooth power and excellent control that provides a natural pedalling feel.

85Nm of maximum torque in a wider cadence range
Compact and light, 2.7 kg weight
Enables FREE SHIFT and AUTO SHIFT functions when combined with the new DEORE XT Di2
Provides extended connectivity via CAN and ACC ports
Extensive customisation options with the E-TUBE PROJECT Cyclist App via FINE TUNE mode
Servo assistance modes: Walk, Eco, Trail and Boost

The EP801 drive unit that comes as standard with the GRAM dk already comes pre-installed with Shimano’s latest firmware update, which includes new features:

higher assistance level for BOOST mode;
a customisation of the assistance cut-off when reaching 25 km/h;
extended assistance when you stop pedalling. To activate the firmware you need to contact a Shimano Centre, soon you will be able to do it yourself via the E-Tube Project Cyclist app.

The Askoll ULTRA C90A power unit represents the culmination of decades of experience that Askoll, multinational company based in Vicenza, has gained in the field of electric motors. This made it possible to develop a drive unit with a first-class power-to-weight ratio: weighing just 2.9 kg, it is capable of delivering 250 W, reaching a peak of 1,200 W. The torque of 90 Nm is optimised for a range of 60-80 pedal strokes per minute with maximum support up to 138 rpm. In BOOST mode, torque reaches 110 Nm. The assistance is adjustable in five levels, offering support ranging from 80% to 400% of the force expressed by the rider.

Askoll ULTRA is equipped with the Sigma EOX technology set featuring the compact and efficient EOX Remote 500 intelligent controller, which shows in real time – via multi-coloured LEDs – the assistance mode in use and the battery charge level and, thanks to its 7 buttons, allows you to manage all the functions of the integrated Askoll ULTRA system.

PURCHASE

By clicking on “CONFIGURATOR”, after choosing the size and graphics of your GRAM dk, you can decide whether to buy only the frame kit or to add other components suggested in the configurator.

*shipping and labour costs for assembly are included in the price. Accessories outside the Dream Kit are not included in the price.

ASSEMBLY

The assembly of the GRAM dk is carried out, in addition to THOK, by selected and authorised shops called Dream Builders:

1) The Dream Builder (besides THOK) is the only one authorised to assemble and homologate your GRAM.
The labour costs for assembly are borne by THOK E-Bikes.
The Dream Builder will assemble your frame and advise you on the choice of the rest of the components to be assembled.
You will be able to decide whether to use parts you already own or purchase new components.

2) When you pick up your GRAM dk, make sure that the Dream Builder has registered your personalised GRAM on the website for warranty activation, and make sure that you receive the Dream Box with the “Libellum”, THOK’s certificate of conformity attesting the uniqueness of your GRAM dk.

CARBON: HIGH-PERFORMANCE CREATIVITY

With its Gram, THOK E-Bikes enters the high-performance carbon world: with carbon fibre you can create many different, complex shapes and harness your creativity.

UNIQUENESS

UD carbon’s lightness

A COMBINATION OF RIGIDITY AND FLEXIBILITY

FULL CARBON COMFORT AND PERFECTION

Quality material, as well as the Gram’s lay-up and design have been devised and developed by THOK to be combined with very efficient geometries that ensure a perfect balance between flexibility and rigidity.

The unidirectional arrangement of the carbon fibres (UD Carbon) allows them to be excluded in areas where they are not needed because they are not used. This means more thickness at the points of maximum stress, less thickness where it is not needed. This ensures the Gram’s absolute endurance for Enduro use, maximum lightness, and at the same time extraordinary rigidity and riding comfort.

The Gram frame includes “high-resistance” carbon (more resistant, less rigid) and “high-modulus” carbon (more rigid, less resistant). Their balance in the distribution within the frame has been assessed through the use of FEM tests: angles, curves and junction points have been reinforced to ensure maximum resistance and flexibility: the motor area, head tube and rear stays are extremely rigid.

E-ENDURO CUSTOMISED GEOMETRY

By using carbon, Gram did not need to make any structural compromises. Its geometry was developed with a “zero limits” mindset. New angles, new lines, new shapes, excellence. From riders for e-riders: the lines of the frame are the combination of all our know-how, our many years of experience as passionate riders, our pursuit of adventure and freedom. With the Gram you will ride on undreamed-of trails, Enduro will no longer have any limits.

EXPLORE WHAT MAKES EACH RIDE UNIQUE

Perfect asymmetry

T-Front System

Down tube “Exagon“

Top tube “Viper Head Plus”

Angles are major players in frame design. Even a small degree difference will alter your pedalling and riding position, traction and riding precision, as well as safety and comfort.

The Gram’s seat tube has been verticalised with a 78° angle to ensure maximum pedalling efficiency and extreme traction on climbs, as the rider’s weight is shifted forward (preventing bike wheelies).

It has an open steering angle of 64°. This enables the bike to go over obstacles without stumbling (avoiding OTB-Over The Bar) and, thanks to the advanced off-set, makes the bike both easy to handle and stable.

The Gram’s innovative steering area features the Big Eye at its centre: simple and perfect magnificence. The BIG EYE is the beating heart of the Gram: it is one of the elements on which THOK’s research and development centre has focused the most. It decreases the load in the head tube area during use on very bumpy enduro trails, while still guaranteeing maximum rigidity and steering precision.

A true E-Enduro force of nature, the Gram has a Viper Head Plus top tube with a headset recess. This provides a lowered position for the handlebar area and consequently a more forward position for the rider on the front end.

In other words: maximum riding stability even in extreme E-Enduro sections. Thanks also to the reduced stand-over provided by the great inclination of the top tube, no climb will be impossible.

THOK PROGRESSIVE SYSTEM 2.

The new TPS-2 suspension system designed by THOK E-Bikes increases the progressivity of the kinematics and optimises its use in Enduro.
The rear wheel travel is extremely progressive: it absorbs all types of obstacles when riding downhill and ensures maximum traction with climbs.
The new full carbon rocker with symmetrical cushioning contributes to zero bending.
The TPS-2 features polygonal seat-stay and asymmetrical one-piece chain-stay.

Technical specifications

Components

Measures

FRAME

THOK – Unidirectional full carbon fiber, headtube tapered 1.8, 29″/27,5″ geometry, integrated down tube battery, UDH Hanger tecnology, enclosed internal cable, fully sealed cartridge bearing, 170 mm travel

SIZES

S (154 – 167cm) – M (168 – 177 cm) – L (178- 184 cm) – XL (185cm to 200)

MOTOR & BATTERY

SHIMANO – EP801 (250W – 85Nm) – Internal Battery 820 Wh
Askoll ULTRA C90A (250W – 90Nm/110Nm) – Internal Battery 820 Wh

DISPLAY & SWITCH CONTROL

SHIMANO – Display SC-EN600 color LCD with remote control SW-EN600
ASKOLL – Display SIGMA EOX® VIEW 1200, with remote control SIGMA EOX® 500

FORK

FOX – 38 Float Factory Kashima 29″ Boost, GRIP2, 180mm travel

SHOCK

FOX – X2 Float Factory Kashima, 2 Pos Adj, THOK Custom tuned, 230×65

CHAINGUIDE

THOK chainguide

CRANKSET & CHAINRING

FSA CrankSet 165mm – Chainring 34T

HEADSET

FSA – tapered 1.8 with THOK stopper

STEM

THOK – Alloy with front clamp oversize 35 mm, ext 35 mm

GRIPS

THOK – Lock-On grip, regular size

SEAT CLAMP

THOK custom – CNC alloy 34,9 mm

SADDLE

THOK Fit in hollow Cr.Mo rail

WEIGHT

11kg

ADDITIONAL KIT

Dream BOX – Libellum THOK

	S	M	L	XL
A - Top Tube Length, Orizzontal (mm)	573	587	612	632
B - Reach (mm)	443	455	475	495
C - Stack (mm)	617	625	638	656
D - Seat Tube Length - center to top (mm)	385	415	430	475
E - ChainStay Length (mm)	450	450	450	450
F - Head Tube Angle	64	64	64	64
G - Seat Tube Angle	78	78	78	78
H - BB Drop (mm)	9,4	9,4	9,4	9,4
I - Wheel Base (mm)	1235	1246	1275	1300
K - Head Tube Length (mm)	99	106	118	130
L - Fork Offset (mm)	44	44	44	44
M - Bottom Bracket Height (mm)	361	361	361	361

BUYING EXPERIENCE

Find assistance with your GRAM dk purchase! The GRAM dk is available for purchase through our network of THOK Points or ONLINE. The entire THOK E-Bikes world is at your disposal to assist you in making the right purchase.

Your GRAM dk on our website

PERSONAL SHOPPER

Our sales assistant is at your disposal by phone: he will support you in choosing the right size for you, finding the most appropriate Dream Builder, answering your questions and supporting you step by step in your online purchase:
– Telephone: +39 3482867154

PURCHASE

The main advantage of online purchases is that it can be done comfortably from your home, at any time of day or night. Our website accepts all types of payment: credit card, bank transfer, PayPal.

ASSEMBLY and DELIVERY

Only THOK E-Bikes or a Dream Builder (selected dealers) are authorised to assemble your GRAM dk frame set.
You may choose THOK E-Bikes to mount your GRAM only for fully assembled bikes with accessories purchased on the site.
Dream Builders, on the other hand, will also be able to assemble the frame set with components used or purchased on other channels than THOK.
Once assembled, the bike must be collected personally by the owner from THOK E-Bikes or the Dream Builder.
For information: shop@thokebikes.com

SERVICE

For all types of purchases (including online), service support is provided by the THOK Point, SHIMANO Center network and THOK E-Bikes, who are always available for direct technical advice, problem solving, and suggestions.
– Email: tech@thokebikes.com
– Phone: +39 0173314141 ext. 2

Your GRAM dk through THOK Point

ASSISTANCE AND PROFESSIONALISM

Our network of THOK Points is composed of bike professionals available to help you on the proper size of your GRAM dk, answer your questions and support you step by step in your in-store purchase.

DELIVERY AND SETUP

If you decide to assemble your GRAM dk through THOK Point (Dream Builder), you can decide whether to use your own components or new components. In both cases they must conform and be compatible with the GRAM geometry.
The Dream Builder, who is aware of the compatibility, will be able to recommend suitable accessories.
The Dream Builder will also take care of setting up the saddle with the corresponding suspension SAG and tyre pressure, and will give you tips on setting up the motor and, if necessary, on the most suitable clothing for using the ebike.

PURCHASE

At most of our THOK Points, it is possible to purchase the GRAM dk.

SERVICE

By purchasing through THOK Point, you will immediately have a local point of contact for technical support and solutions to any problems. THOK E-Bikes is always at your direct disposal for advice and suggestions.
